Multimedia all-in-one CCC certification

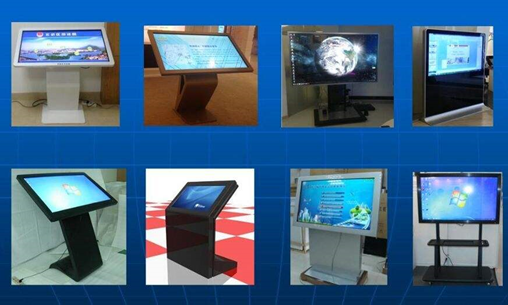

The multimedia all-in-one machine integrates infrared touch technology, intelligent office software, multimedia network communication technology, high-definition flat-panel display technology and other technologies into one, integrating a projector, electronic whiteboard, computer (optional), TV, touch function, etc. Multi-functional interactive devices with multiple devices in one, which upgrade the traditional display terminal into a full-featured human-machine interactive device. Through this product, users can achieve writing, commenting, drawing, multimedia entertainment, and computer operations. Directly opening the device can easily perform wonderful interactions. With the development of society, the all-in-one machine has gradually spread to communities, schools, hospitals, banks, shopping malls, restaurants and other occasions. The following are some matters about the 3C certification of the all-in-one machine organized by ZRLK.

According to the functional description and hardware structure of the all-in-one, it mainly involves three certified product categories: 0808, 0901 and 0903. All-in-ones are generally considered to be 0901 and 0903. When the product has the functions of display and TV, double standards should be considered, that is, to apply for CCC certification according to categories 0808 and 0903, the test is tested according to the standards of 0808 and 0903, a report is issued, and a certificate is issued ( It is generally issued according to the category 0903).

1. Unit division:

In principle, application units should be divided according to product category, type, specifications, working principle, safety structure, etc., but for products with display screens, application units should also be divided by screen size, and power supply should be divided by power. For products with different working methods, application units should also be divided according to working methods (eg, scanning method, display method, etc.).

2. Certified mode:

Issuing the certificate first and then auditing the factory (the factory must be audited within 3 months after obtaining the certificate)

3. Certification process:

Product inspection + initial factory inspection + supervision after certification. To put it simply, it is to submit an application-product testing-factory inspection-data review-payment and certification.

4. Application materials

(1) Application for certification;

(2) The registration certificate of the certification client, producer, and production enterprise (such as business license);

(3) Self-assessment report/statement of the manufacturer’s factory quality assurance capability;

(4) Factory inspection questionnaire;

(5) Relevant agreements or contracts (such as ODM agreement, OEM agreement, authorization, etc.) signed between the certification client, producer, and production enterprise;

(6) Product description information, mainly including: model description, technical parameters, key components and/or material lists, electrical schematics, and differences in products of different specifications contained in the same certification unit;

(7) Chinese instruction manual, Chinese nameplate and warning signs;

(8) Other required documents;

5. Fees

The specific cost depends on the specific product and key parts filing situation. For details, please consult our company.

6. Key parts

CCC certification focuses on the consistency of products, and also has high requirements for key parts of products. Therefore, when applying for CCC, all-in-one machine companies need to pay special attention to the need for key components to obtain CCC or CQC certification. The key parts of this all-in-one product include: wire assembly, appliance input socket, power switch, built-in power unit (with switching power supply (box shape) or main board power supply), printed board base material or finished board, etc.

7. The CCC test of the all-in-one product is divided into two parts

(1)Safety structure test

(2) Electromagnetic compatibility test
